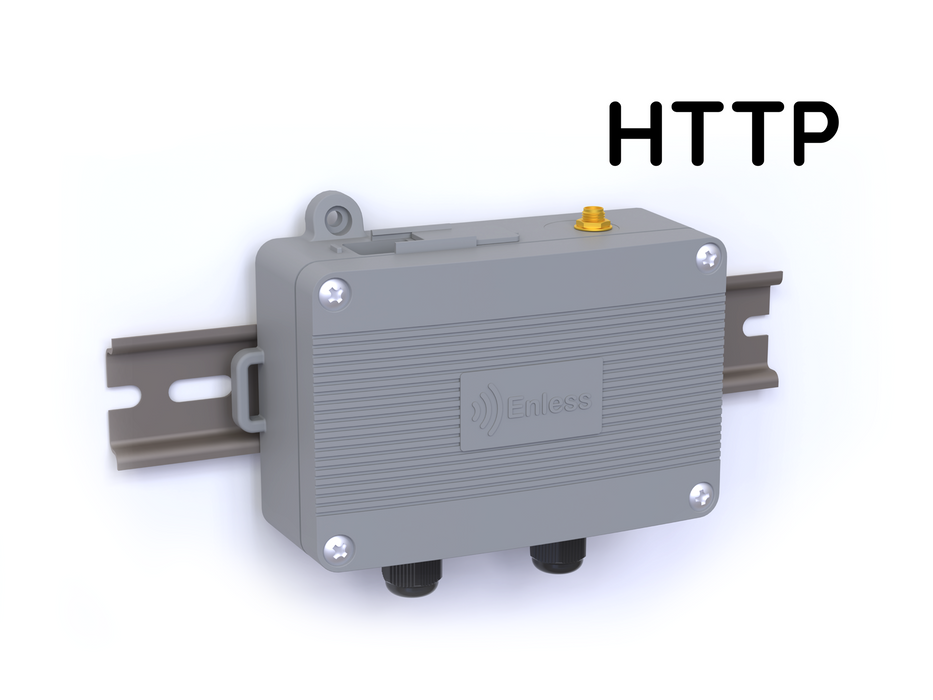

500-322 HTTP Receiver - Post data on a HTTP server - provided without antenna
LoRa HTTP Receiver applications
The Enless RX HTTP LoRa receiver can collect data from up to 50 Enless proprietary LoRa sensors simultaneously and automatically transmit it to an HTTP server using the HTTP POST protocol. It is an ideal solution for system integrators, operators, or energy managers looking to send environmental, technical, or energy data to their business tools (dashboards, BMS, supervision systems, etc.).
Direct Integration via HTTP POST
This receiver is only compatible with Enless proprietary LoRa protocol (not LoRaWAN). Data is sent in real time to an HTTP URL that you configure.
The integrated local configuration interface allows users to:
-
Easily pair their Enless sensors
-
Set the HTTP destination URL
-
Check the radio signal quality (RSSI) between the sensors and the receiver
Radio Performance
As with other Enless receivers, the RX HTTP benefits from the excellent range of the Enless proprietary LoRa protocol: up to 4 km in open field. Indoors, range may vary depending on the environment, but remains well-suited for large commercial or industrial sites. If the radio signal is weak, signal repeaters can be used to extend coverage.
Recommended Antenna
The receiver is delivered without an antenna. For optimal performance, it is recommended to use a long-range antenna (ref: ANT REN SMA LR 868 – 1000-008).
The receiver is delivered without a DIN rail mounting kit. For optimal performance, it is recommended to use a DIN rail support.
Technical Specifications
| Use : | Post data to an HTTP server |
| Interfaces : | HTTP |
| Radio protocol : | Enless proprietary LoRa (not compatible with LoRaWAN mode) |
| Dimensions : | L 118 x H 79 x D 43 mm |
| Power supply : | Main 7.5 up to 24 VDC or external 12 VDC power supply |
| Enclosure and IP rating : | Material : ABS IP 60 |
| RSSI signal : | Accessible via the receiver's web server |
| LEDs : | 5 LEDs and 1 external power LED |
| Certification : | CE |
If you need help selecting your wireless sensors please read our 5 min guide.
